SEAT Cordoba Water-Damaged ECU Cloning

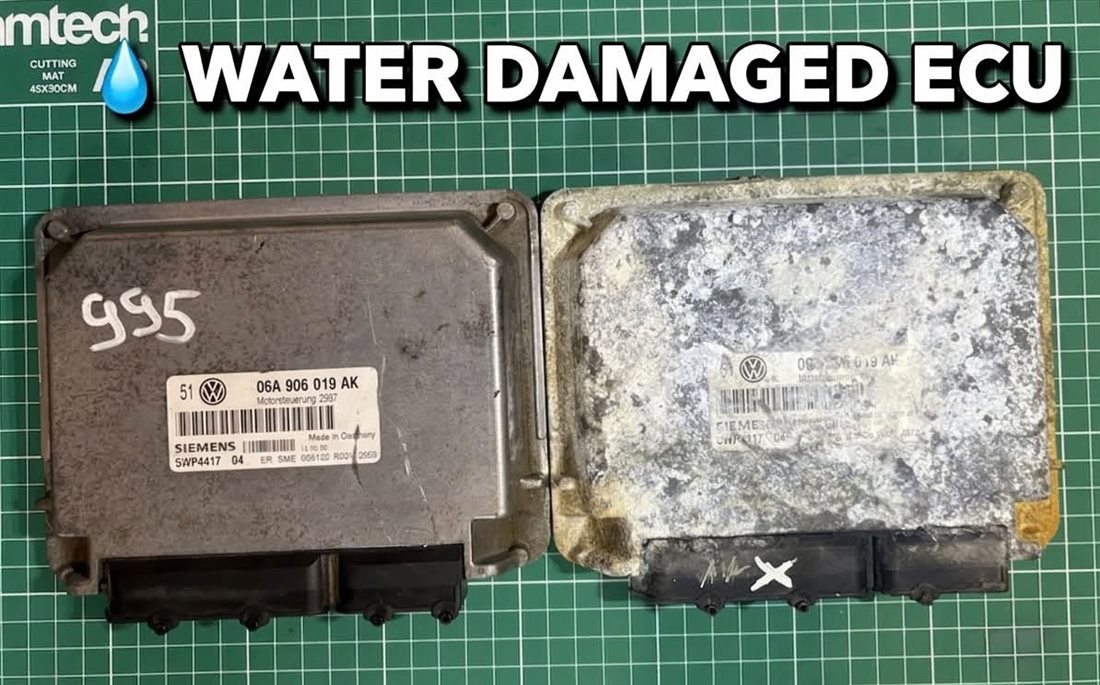

A water-damaged engine ECU from a 2000 SEAT Cordoba 1.9 TDI was received for assessment. The original ECU data was recovered, and the required data was transferred to a compatible donor ECU.
Technical Summary
Vehicle and Fault
- Vehicle: 2000 SEAT Cordoba 1.9 TDI
- Fault condition: Original ECU affected by water damage
Work Completed
- Original ECU inspected
- Required original ECU data recovered
- Compatible donor ECU checked
- Original data transferred to donor ECU
- Donor ECU prepared for installation
Why Water-Damaged ECUs Need Careful Assessment
Water damage can affect the ECU circuit board, connectors, power supplies, processor or memory. Even where the original ECU cannot be repaired reliably, readable data may still allow a compatible donor ECU to be prepared.
The original cause of the water ingress must also be corrected before the replacement ECU is installed. Blocked drains, damaged covers, failed seals, connector corrosion or wiring faults can damage the replacement unit if they remain unresolved.
Donor Compatibility Must Be Confirmed
A donor ECU must not be selected from the vehicle model alone. ECU part numbers, hardware versions, software compatibility and required immobiliser data must be checked first.
Customers should send photographs of the original ECU label before purchasing a donor ECU.
Case-Study Result
The original ECU data was successfully recovered and transferred to the selected donor ECU. The prepared donor was returned for vehicle installation.
